CV-JOINT | JIKIU - JC13013

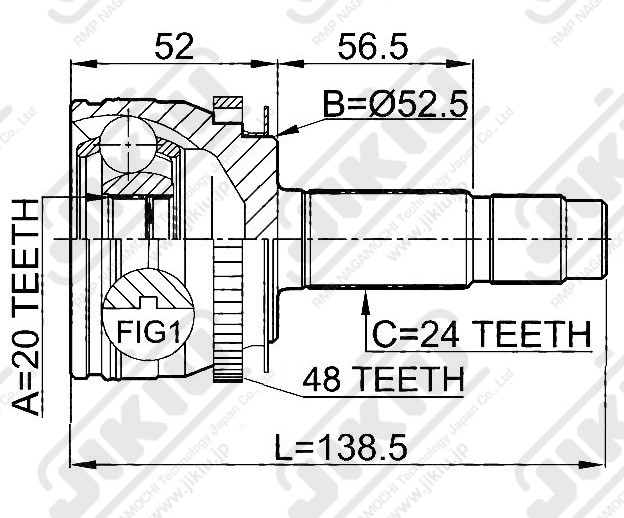

Specification

A (Teeth)

20

B (Ø, mm)

52.5

C (Teeth)

24

L (mm)

138.5

A.B.S. (Teeth)

48

Location

Front Axle Transmission

Position

Outer Left/Right

Alternative Number

Number

JC13094

Sub Assembly

Brands

JIKIU

Part

CD11040

Type

DRIVE SHAFT BOOT

Parent Assembly

Brands

JIKIU

Part

AS11004

Type

SHAFT ASSY

Crosses

Owner
Number
Ashika
620KK05
ASVA
KA-PICA48
Blue Print
ADG089143
CAUTEX
760208
FAG
771 0453 30
FARE
17040
FeBest
2210-PICA48
HERTH+BUSS
J28203133
HYUNDAI
49501-07300_JCO
HYUNDAI
49501-07310_JCO
HYUNDAI
49591-07010_JC
HYUNDAI
49591-07090_JC
HYUNDAI
49591-07390_JC
HYUNDAI / KIA
49591-07010_JC
HYUNDAI / KIA
49591-07090_JC
HYUNDAI / KIA
49591-07310_JC
HYUNDAI / KIA
49591-07390_JC
JAPANPARTS
GI-K05
KAVO PARTS
CV4003
KIA
49500-07010_JCO
KIA
49591-07010_JC
KIA
49591-07090_JC
KIA
49591-07100
Owner
Number
KIA
49591-07190
KIA
49591-07390_JC
LPR
KMZ647
LYNXauto
CO-3798A
MAGNETI MARELLI
302015100172
Mando
HM827072
Maxgear
49-1271
Meyle
28-14 498 0003
MILES
GA 20184
NIPPARTS
N2820309
NK
513508
NPS
K281A10
Optimal
CW-2858
Optimal
CW-3037
PATRON
PCV1614
SKF
VKJA5479
STC
T412068
STELLOX
150 1795-SX
TRIALLI
GO 073339
Triscan
8540 18104
Vaico
V53-0034
ZEKKERT
GS-3992
