BALL JOINT | JIKIU - JB26841

Specification

Thread Size:

M14x1.50

Cone Pitch:

1:8

Ø (mm):

46.33

Overall Height (mm):

92

Cone Size Ø (mm):

15.8

Mounting Height (mm):

61.5

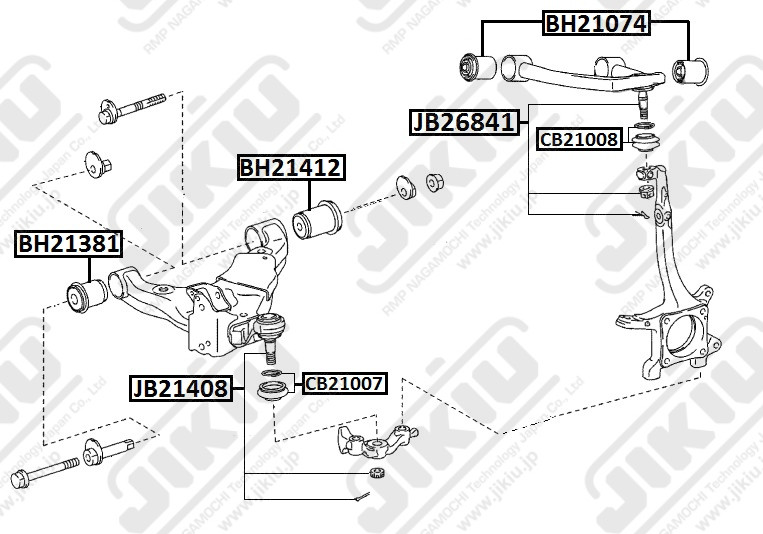

Location

Front Axle Arm/Rod

Position

Upper Left/Right

Sub Assembly

Brands

JIKIU

Part

CB21008

Type

BALL JOINT BOOT

Parent Assembly

Brands

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

Type

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

Crosses

Owner
Number
555 SANKEI
SB-3841
CTR
CB0446
CTR
CBT-103
FeBest
0120-234
FeBest
0120-334
JRAPP
A1146
JRAPP
A1219
LYNXauto
C1231LR
LYNXauto
C1324LR
SWAG
81 94 3066
TOYOTA
43310-0C011
TOYOTA
43310-60010
TOYOTA
43310-60020
TOYOTA
43310-60030
TOYOTA
43310-60040
Owner
Number
TOYOTA
43310-60050
TOYOTA
43310-60060
TOYOTA
43310-60070
TOYOTA
48610-0C011_JB
TOYOTA
48610-60030_JB
TOYOTA
48610-60050_JB
TOYOTA
48610-60060_JB
TOYOTA
48610-60070_JB
TOYOTA
48630-0C011_JB
TOYOTA
48630-60010_JB
TOYOTA
48630-60020_JB
TOYOTA
48630-60030_JB
TOYOTA
48630-60040_JB
