BALL JOINT | JIKIU - JB29012

Specification

Thread Size:

M12x1.25

Cone Pitch:

1:6

Ø (mm):

40.3

Overall Height (mm):

84

Cone Size Ø (mm):

13.5

Mounting Height (mm):

60

Location

Front Axle Arm/Rod

Position

Lower Left/Right

Sub Assembly

Brands

JIKIU

Part

CB23023

Type

BALL JOINT BOOT

Parent Assembly

Brands

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

Type

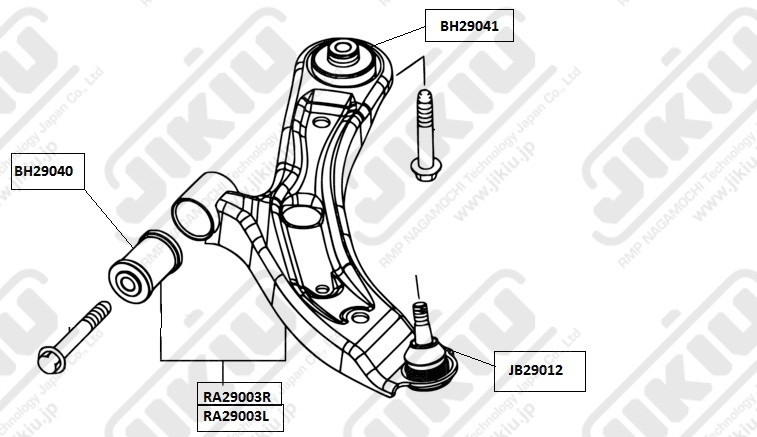

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

Crosses

Owner
Number
555 SANKEI
SB-S012
555 SANKEI
SB-S202
A.B.S.
220526
Ashika
73-08-803
BIRTH
CX0207
CTR
CB0341
CTR
CBN-82
JIKIU
JB22022
JIKIU
JB22028
JIKIU
JB29009
JIKIU
JB29010
MCHANIX
SZBJT-002
MITSUBISHI
MQ501075_JB
MITSUBISHI
MQ501076_JB
MITSUBISHI
MQ505810_JB
MOOG
NI-BJ-12582
NISSAN
54500-4A00C_JB
NISSAN
54501-4A00C_JB
NISSAN
54529-4A00A_JB
NISSAN
54529-4A00D_JB
NISSAN
54530-4A00A_JB
NISSAN
54530-4A00D_JB
Sidem
77086
Owner
Number
SUZUKI
45201-68R00_JB
SUZUKI
45201-71L00_JB
SUZUKI
45201-82M00_JB
SUZUKI
45201-M60M01_JB
SUZUKI
45201-M68K00_JB
SUZUKI
45201-M74L20_JB
SUZUKI
4520153R01_JB
SUZUKI
45202-68R00_JB
SUZUKI
45202-71L00_JB
SUZUKI
45202-82M00_JB
SUZUKI
45202-M60M01_JB
SUZUKI
45202-M68K00_JB
SUZUKI
45202-M74L20_JB
SUZUKI
4520253R01_JB
SUZUKI
45700-42L00
SUZUKI
45700-52R00
SUZUKI
45700-54M00
SUZUKI
45700-64P00
SUZUKI
45700-68R00
SUZUKI
45700-71L00
SUZUKI
45700-82M00
SWAG
33 10 7084
